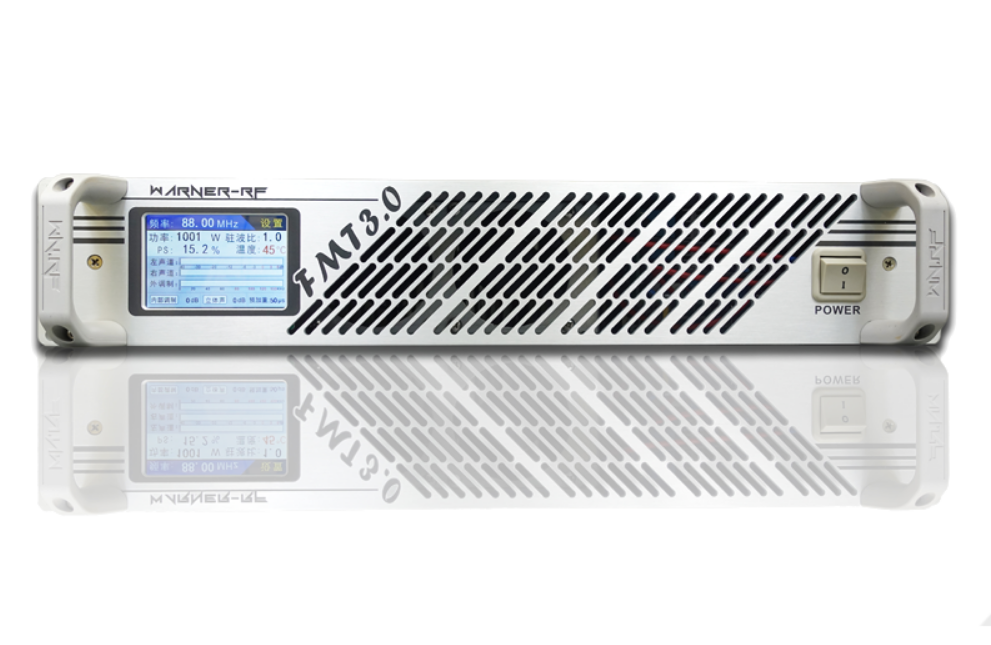

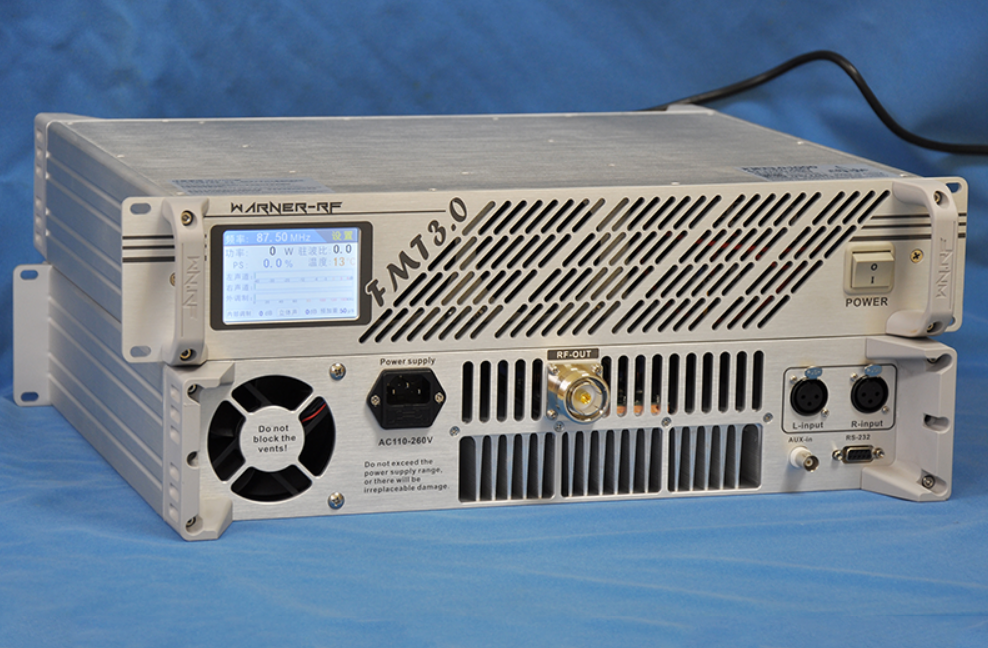

HLLY WARNER PROFESSIONAL 1KW 1000W Touch LCD FM Transmitter
Antenna is not included!!!
FMT 3.0 1000W * 1
Package will be shipped via EMS/DHL/TNT to Worldwide, the shipping time is about 6 to 8 business days
Free shipping to Worldwide
FEATURE (FMT 3.0 1000W)
This is the FMT series the 3rd generation product, using DSP+PLL technology, better sound quality.
One touch bigger screen.
Upgrade frequency step to 5KHz.
Professional radio power tube MRFE6V1K25H, 65:1 VSWR.
Standard 19 inches, 2U whole aluminum case.
Wiredrawing and oxidation makes surface bright, clean and elegant.
LCD touch screen displays working frequency, volume, FETMOS temperature, forward power and SWR.
Provided with the series of protection function, own active protection and raise alarm prompts once meet trouble while working.
Accurate operating index and perfect protection measures make you are aware of the operating status of your machine.
Easily installation and simply operations.
TECHNICAL SPECIFICATIONS (FMT 3.0 1000W)
RF Output Power: 0 to 1000 Watts, 1W/Step
Frequency range: 87.5-108 Mhz, 5KHz/Step
AC power source: AC110V ~240V ±10% ,50-60Hz, single phase
Frequency Stability: better than ±100Hz
S/N Ratio: More than 60dB
Distortion: less than 0.1%
Modulation: FM,±75KHz peak deviation
Transmission Signal: FM Stereo or Mono
Tuning Design: Stable PLL Technology
Harmonic suppression: < -75dBC
Stereo Separation: More than 50db
RF Output Connector: L29 -female
RF Output Impedance: 50 ohm
Audio channel Frequency Response: 50 - 15000Hz ±0.5dB
Audio Input Level: -15db, Max -30db
Audio Input Connector: XLR type
AUX Input Connector: BNC
Operating temperature range: -10 to 45 ℃
Size of Transmitter Unit: 483mm * 400mm * 88mm (19" Standard 2U case)
Shipping Weight: 12Kg
